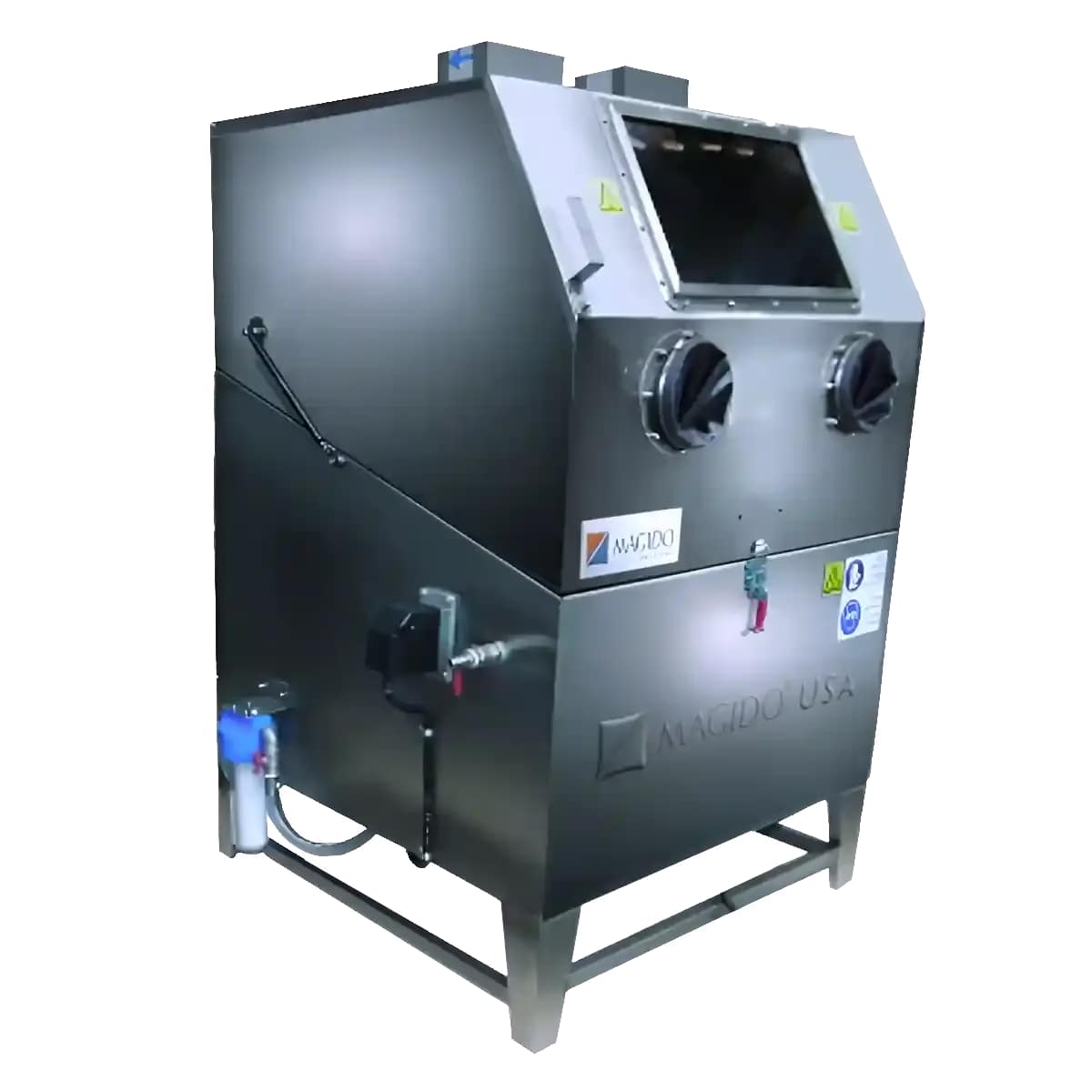

Magido L102 HP
L102 HP
Industrial Jet-spray Parts Washers
These parts washers are designed to combine spray washing and high pressure wash, using aqueous detergents at a temperature of 60°C maximum. All machines are made of AISI 304 stainless steel and they are models for one wash treatments. These machines function thanks to the basket’s motorized rotation around its vertical axis and they are suitable for washing medium-sized parts, with heavy weights. These machines are also equipped with a 60 bar water gun, powered by the aqueous solution, in order to perform a precise manual washing, at high pressure.
Available Options
L-102 HP Options
- Heated Dryer
- Fresh Water Rinse To Drain (X-51 Series)
- Air Blowoff Cycle
- Filtration
- Oil Water Separator
- Oil Skimmer
- Steam/Mist Collector
- Automatic Water Fill
- 24/7 Programmable Heater Control
- Automatic Chemical Injector
- Removable Turntable With Cart
- Stack Light Tower
- Pump Upgrade
X51/HP L-102
L-102 HP Features
- Turntable with Containment Ring - 35”
- Working Height - 19.5”
- Jet-Spray Manifold (304 Stainless) - 2
- Vee-Jet Wash Nozzles (Optimized) - 44
- Load Weight - 440 lbs
- Tank Capacity - 46 gal
- Pump: Lowara/Centrifugal GPM/PSI - (2) 1.5-HP 29/37
- High Pressure Spray Wand GPM/PSI - 3.7/870
- Tank Heater - 6kW
- Max Operating Temperature - 160 F
- Pump Timer - 0-60 min
- Voltage - 230/460
- Phase - 1-3
- Length (Lid Open) - 53”
- Width - 51”
- Height (Lid Open) - 78 ¾”
- Weight - 441 lbs.
L-102 HP Features
- 304 Stainless Steel Cabinet
- 304 Stainless Steel Centrifugal Pump
- Stainless Steel Turntable with Containment Ring
- High Pressure Spray Wand
- Automatic Turntable Drive
- Incaloy Heating Elements
- Magnetic Float Fluid Level Sensor
- Strut Actuated Lid with Lock
- Viewing Window with Air Clearing Manifold
- LED Illuminated Cabinet
- Door Safety Switch
- Stainless Steel Bars
- Stainless Steel Vee-Jet Wash Nozzles
- Isolation Floor with Removable Chip Basket
- Removable Debris Screen
- Tank Drain
L-102 HP Features
- 24V Control Voltage
- NEMA 4 Electrical Panel
- Push Button Emergency Stop
- Rotary Main Power Disconnect Switch
- Safety Overload Protection
- Door Interlock Safety Switch
- Glove Box Interlock Safety Switch
- Locking Counter Balanced Lid
- Liquid Level Shutoff Switch
- High Limit Temperature Sensor
- No Sharp Metal Edges
- Low Noise Operation < 70 dBA
- CE Certified
