A1100 Immersion Parts Washer

A1100

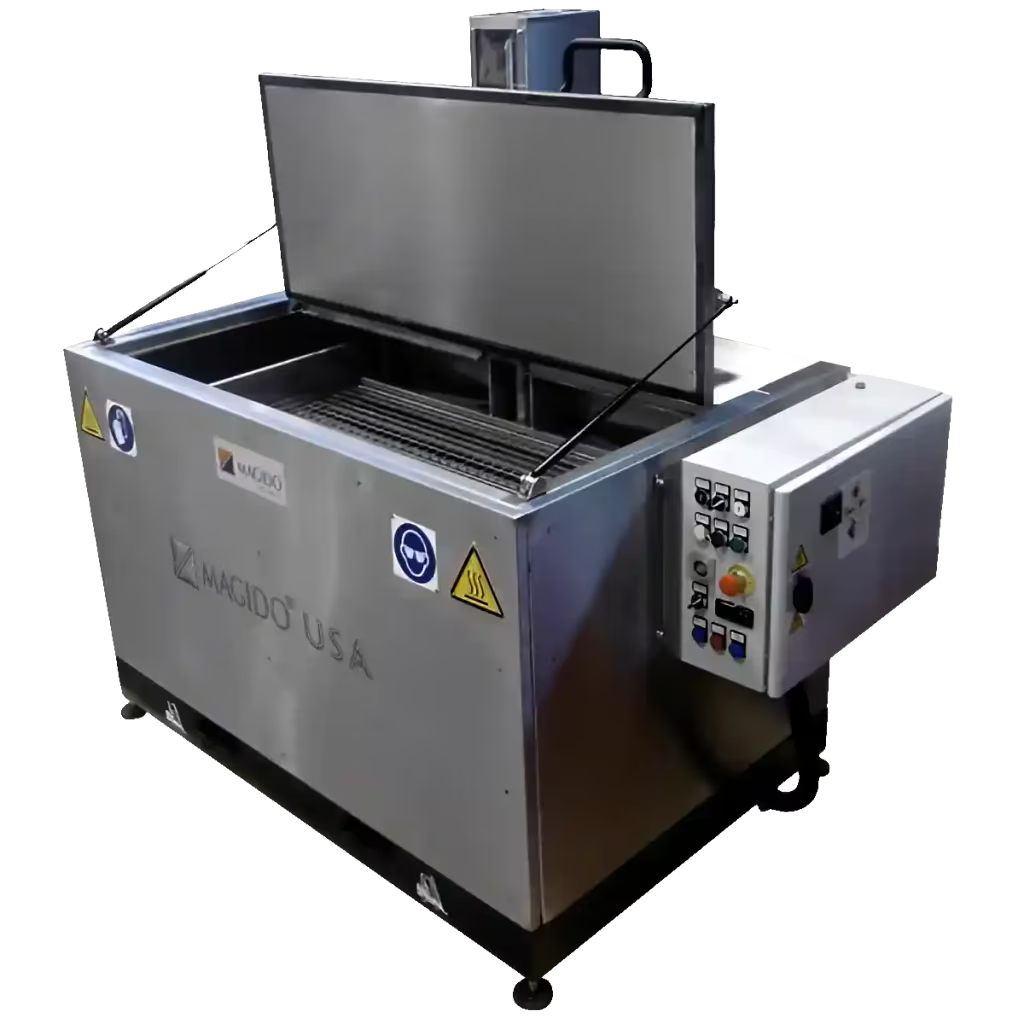

A1100 Immersion Parts Washer

The Magido A1100 is a top load immersion parts washer from the Agita Series, featuring a 140gallon tank and 550lb load capacity – sharing the A900’s weight rating but increasing solution volume by 40%. The larger tank is particularly beneficial for parts with significant internal volume – manifolds, cylinder heads, hydraulic blocks, and complex castings that displace a large portion of solution when submerged, which can cause temperature drop and reduced cleaning effectiveness in smallertank models. The pneumatic oscillating platform drives heated solution (up to 167°F) into all internal features. Built entirely from AISI 304 stainless steel.

a1100

Available Options

A1100 Options

A1100

STANDARD FEATURES

SAFETY FEATURES

SPECIFICATIONS



PLATFORMWORKING HEIGHTLOAD WEIGHTFLUID/TANK CAPACITYHEATEROPERATING TEMPERATUREPLCVOLTAGE / AMPERAGEPHASELENGTHWIDTHHEIGHT
W43.4″ x D15.7″ Inches15.7″ Inches550 lbs140 gal gal US10kWAmbient-170°FSiemens230/460 V / A3 Ph42″ Inches76″ Inches67″ Inches
