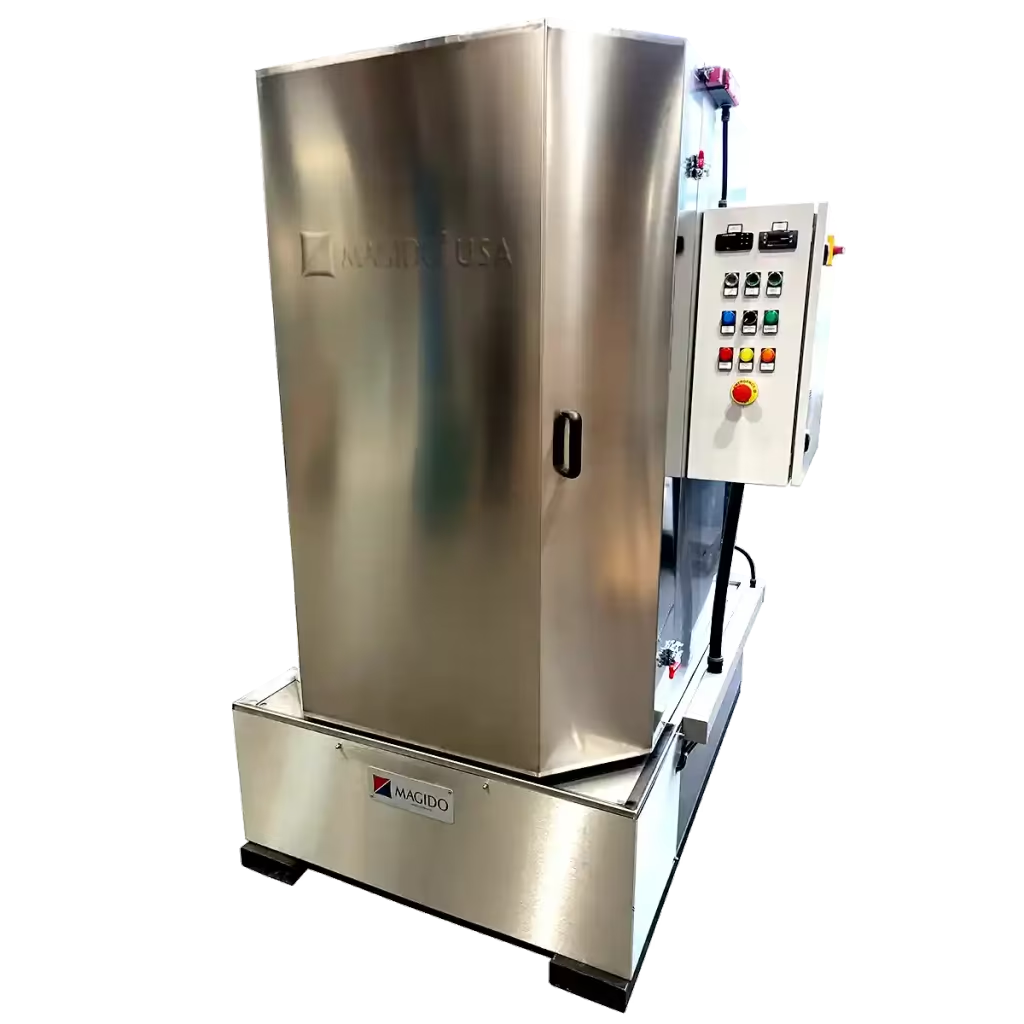

The Magido FLS30 is a front load spray cabinet parts washer from the FLS Series, featuring a 30″ turntable, 60gallon tank, 2 HP pump, and 1,200lb weight capacity in a compact 50″ × 60″ × 72″ footprint. The frontloading door provides easy access for loading medium to large parts, and the FLS Series’ fixed spray nozzle configuration delivers thorough automated aqueous cleaning at temperatures up to 140°F. Safety interlocks and programmable wash cycles are standard. The FLS30 is the entry model and the most spaceefficient configuration in the FLS line – suited for automotive service, diesel maintenance, and industrial facilities that need automated frontload spray cleaning without a large floor area commitment.
| TURNTABLE BASKET | HEIGHT CAPACITY | LOAD HEIGHT | LOAD WEIGHT | FLUID/TANK CAPACITY | PUMP(S) | FLOW RATE | SPRAY PRESSURE | HEATER | MAX OPERATING TEMPERATURE | VOLTAGE | PHASE | HMI | PLC | OVERALL DIMENSIONS (DOOR CLOSED) | OVERALL DIMENSIONS (DOOR OPEN) | NET WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 59″ x 59″ Inches | 59″ x 59″ Inches | 39″ Inches | 1,500 lbs | 132 gal US | 10 psi Hp | 145 GPM | 65 psi | 30 kW | 160 °F | 460 V-60 Hz | 3 Ph | Weintek | Siemens | L98.5″ x W80″ x H99.5″ Inches | L98.5″ x W80″ x H132″ Inches | 2,590 Lbs |
