A700 Immersion Parts Washer

A700

A700 Immersion Parts Washer

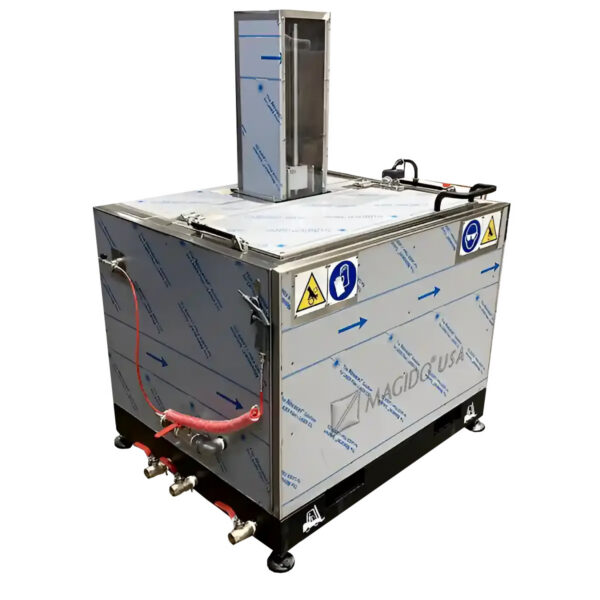

The Magido A700 is a top load immersion parts washer from the Agita Series, featuring a 70gallon tank and 180lb load capacity. Parts are lowered into heated aqueous cleaning solution by a pneumatic platform that oscillates during the cleaning cycle, driving solution into blind holes, internal passages, threaded features, and complex geometries that spray washing alone cannot reach – making the Agita Series the right choice for precision components where complete surface contact with the cleaning solution is required. Operating at temperatures up to 167°F, the A700 is the entrylevel Agita model suited for smaller precision components, instrument parts, and machined assemblies. Built entirely from AISI 304 stainless steel.

a700

Available Options

A700 Options

A700

STANDARD FEATURES

SAFETY FEATURES

SPECIFICATIONS



PLATFORMWORKING HEIGHTLOAD WEIGHTFLUID/TANK CAPACITYHEATEROPERATING TEMPERATUREPLCVOLTAGE / AMPERAGEPHASELENGTHWIDTHHEIGHT
W27.6″ x D15.7″ Inches13.8′ Inches180 lbs70 gal gal US6kWAmbient-170°FSiemens230/460 V / A1-3 Ph38″ Inches60″ Inches59″ Inches
