A900 Immersion Parts Washer

A900

A900 Immersion Parts Washer

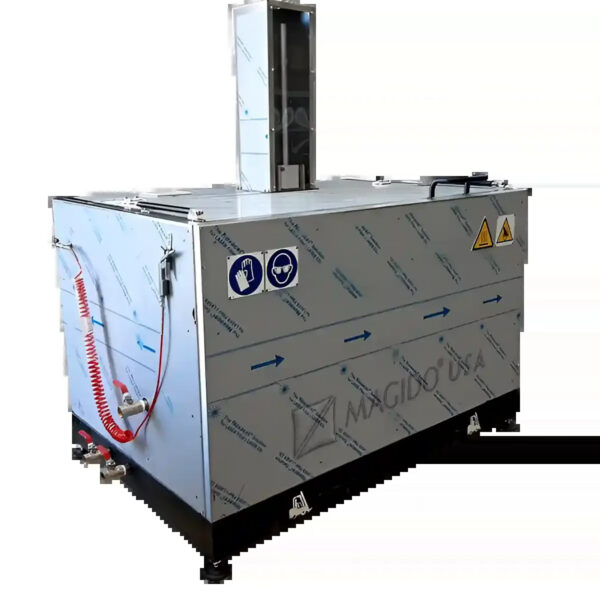

The Magido A900 is a top load immersion parts washer from the Agita Series, featuring a 100gallon tank and 550lb load capacity – significantly more capable than the A700 for larger and heavier precision parts. The pneumatic oscillating platform lowers parts into heated aqueous solution (up to 167°F) and agitates to drive cleaning action into blind holes, internal passages, and complex geometries. The 100gallon tank accommodates parts with greater surface area and provides more solution stability than the A700. Built entirely from AISI 304 stainless steel. The A900 is wellsuited for mediumsized castings, hydraulic components, manifolds, and precision assemblies that require full immersion agitation.

a900

Available Options

A900 Options

A900

STANDARD FEATURES

SAFETY FEATURES

SPECIFICATIONS



PLATFORMWORKING HEIGHTLOAD WEIGHTFLUID/TANK CAPACITYHEATEROPERATING TEMPERATUREPLCVOLTAGE / AMPERAGEPHASELENGTHWIDTHHEIGHT
W35.4″ x D15.7″ Inches15.7″ Inches550 lbs100 gal gal US8kWAmbient-170°FSiemens230/460 V / A3 Ph38″ Inches68″ Inches67″ Inches
