CleanMaster 230
The CM230 is our best-selling solvent parts washer, designed to fit seamlessly into any parts-washing process. This sink-on-drum unit features an integrated wash spigot and flow-through wash brush, delivering powerful solvent cleaning at your fingertips.
This efficient, compact parts cleaner offers rugged 16-gauge drawn steel construction at an excellent value. A flexible rinse spigot and flow-through wash brush with independent flow control provide versatility at the workstation. Available accessories add functionality and quality-of-life improvements to this efficient performer.
FEATURES
- 3 cu.ft. 31” x 23” x 7.25” work volume with additional large part work height clearance.
- 75 lbs. weight capacity
- Extra deep drawn sink for part and spray containment.
- 30-gallon drum and capacity
- 205 GPM @ 1 ft. rated pump with triple seal Viton shaft seal for long service life.
- 115 VAC, 1.1A electrical requirement
- Flexible wash spigot with integrated ball-valve flow control.
- Flow-through wash brush with integrated push button flow control.
- Tough 16GA construction for the sink and lid to handle harsh work environments.
- Sink is fully epoxy powder coated.
- High-grade brand name components throughout.
- Simple lift-off sink with no tools required for easy drum access and service.
Applications
- Industrial Cleaning
- Automotive Service/Repair
- CNC Fabrication Rinse
- Agricultural Fabricators
- Agricultural Maintenance/Repair
- Power Sports Shops
- Government Municipalities
- Aerospace
- Post Processing
- Military Service/Repair
- Integrated fusible link for fire safety
- Switch pump control and secondary accessory receptacle
- Overall Dimensions: 35.5” W x 26.5” D x 63” H (drum, open lid)
- Shipping Dimensions: 36.5” W x 30.5” D x 15.75” H
- Shipping Weight: 80 Lbs.
Product Highlights
Rugged 16GA construction featuring a deep-drawn, flanged sink and a durable powder-coat finish.
Full, independent flow control for wash functions enables on-demand cleaning.
An integrated fire safety fusible link is built into the lid spring assembly.

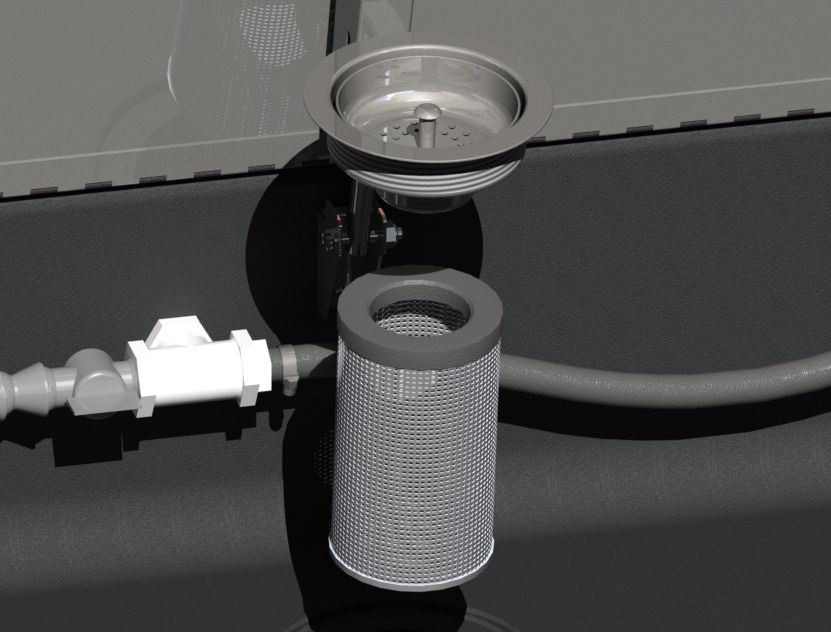

Function expanding accessories like drain/strainer upgrade that allows close-off and part soaking.
Electrical Configurations
| Voltage | Phase | Freq. | Current | Main Fuse | Heating Wattage |
|---|---|---|---|---|---|
| 115 V | 1 PH | 60 Hz | 1.1 A | N/A | N/A |
